NAGAOKA SCREEN INTERNALS Enhancing performance of oil refining and petrochemical complex across the globe

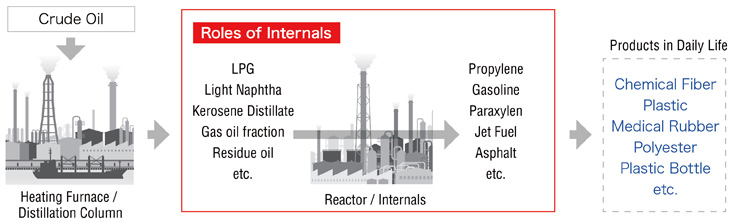

What are “Internals”?

Nagaoka Screen Internals are used in the heart of oil refining, petrochemical and chemical fertilizer complex. Screen Internals are installed inside the reactor, playing an important role in chemical reaction, extraction and separation from oil and gas. Hence, Screen Internals are operated under high temperature, pressure and corrosive environment, requiring high strength and precise design, which can only be achieved with high technology and cultivated experience.

What are “Internals”?

Only Three Certified Suppliers for Screen Internals Supply Over the World

Internals are one of the most critical component in oil refining process. Only three companies are approved by Process Licensors (UOP and IFP / Axens, etc.) for the manufacturing of Screen Internals around the world. One in U.S.A., one in Europe and NAGAOKA in Japan. The Process Licensors issue license of patents and basic design of oil refining and petrochemical complex to Plant Owners. The use of “Certified” Screen Internals manufacturer are the necessary condition for performance guarantee of oil refining and petrochemical complex by the Process Licensors.

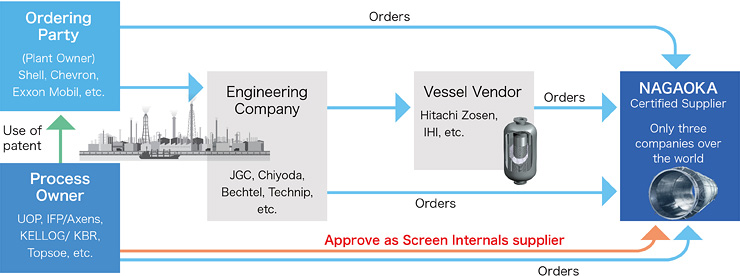

Flow of Order Receipt for Internals

Flow of Order Receipt for Internals

PRODUCTS

Internals for Reforming Reactors

The reactors for the reforming units with continuous regeneration are one of the reactors in the oil refining and petrochemical processes, in which activated catalysts are sent to subsequent processing equipment for regeneration. Both these reactors and regenerators are “Radial Flow type” consisting of inner and outer catalyst support baskets, for which the NAGAOKA SCREEN BASKET is recommended by the leading process owners as the most suitable internals for process efficiency.

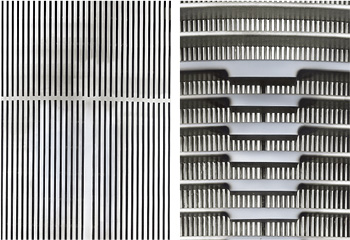

NAGAOKA SCREEN facilitates smooth catalyst movement without clogging and less damage to the catalyst due to the continuous vertical slots and smooth surface.

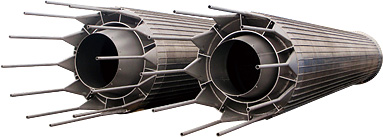

INTERNALS for RADIAL FLOW REACTOR

NAGAOKA SCREEN INTERNALS have perfect feature for the catalyst support on radial flow type reactors during refining and petro-chemical processes, with its durable structure. NAGAOKA SCREEN INTERNALS offer high performance under severely high temperature.

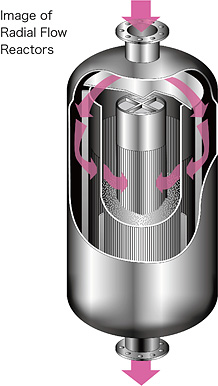

Image of Radial Flow Reacrots

INTERNALS for Down Flow Reactors

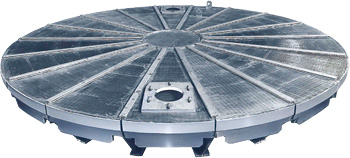

For down flow type reactors, NAGAOKA SCREEN INTERNALS are used not only for catalyst support, but also for molecular sieve support, ion exchange resin support and other applications. NAGAOKA SCREEN bed support is widely used at the variety of process in refining, and petro-chemical industries.
Since the bed support must be capable of withstanding significant catalyst load and drop in pressure, a strong structure is required for the support.
NAGAOKA strives to be involved from initial stage of the design for our customer and process owner, optimizing the production and contributing to reliability of the process.

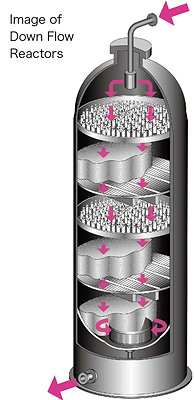

Image of Down Flow Reactors

Cooperative Development Agreement with UOP

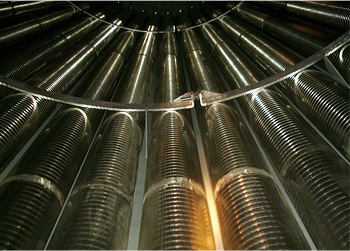

In 1990, NAGAOKA has made a Cooperative Development Agreement with leading process licensor UOP-Honeywell, since then NAGAOKA has contributed to development of internals in various process. By year 1999, NAGAOKA has co-developed Profile Wire Scallop with UOP-Honeywell, and already applied successfully in numerous refineries.

Technical Service

NAGAOKA provides technical service for on-site inspection, installation, maintenance and replacement at turn around in pursuit of customer satisfaction.

Nagaoka Screen Internals gain 45-Year- World Recognition as global standard.

Approved by Process Licensors

  • 1976 IFP/AXENS
  • 1978 UOP LLC
  • 1978 DOW CHEMICAL
  • 1981 BADGER / STONE&WEBSTER
  • 1981 ABB LUMMUS
  • 1990 KELLOG/ KBR
  • 1991 TOPSOE
  • 2006 Shell
  • 2006 Chevron

NAGAOKA SCREEN INTERNALS Supply Record (1976-2015)

  1. 1.Adsorbent Chamber (Manufacturing materials for chemical fiber, plastic bottles, etc.)
  2. 2.OleflexTM Units (Manufacturing materials for chemical fibers, tires, etc.)
  3. 3.Styrene Monomers (Manufacturing materials for resins, plastic, etc.)
  4. 4.Reformers・Regenerators (Manufacturing materials for high-octane fuel)
  5. 5.Desulfurization unit (Removing impurities like sulfur, etc.)
  6. 6.Ammonia Converter (Manufacturing materials for chemical fertilizer)

Cooperative Development with UOP LLC

  • 1990 Engineering Development Agreement
  • 1999 Development of New Profile Wire Scallop

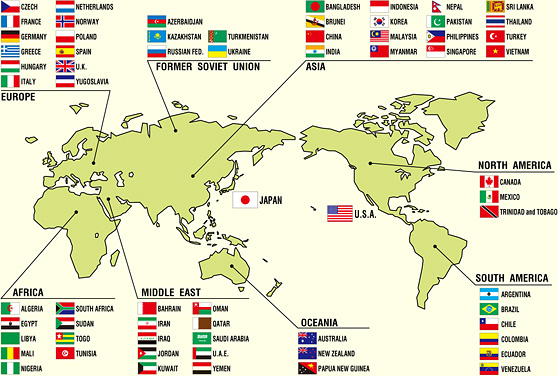

Supplied 65 countries worldwide, and continuously striving to develop new process unit

NAGAOKA SCREEN INTERNALS play a pivotal role in chemical reaction, extraction and separation in oil refining, petrochemical and chemical fertilizer plants. NAGAOKA SCREEN INTERNALS are supplied to 65 countries around the globe, and are operated successfully. High quality of NAGAOKA Products are acclaimed by many process owners globally, and agreed to cooperate for mutual development of new process. Hence, NAGAOKA has great potential and opportunities to expand.

Supplied 65 countries worldwide, and continuously striving to develop new process unit
