“ENERLES”, the non-powered water treatment system with the application of CHEMILES technology. “AERSYS”, removing harmful substances contained in water without chemicals.

Non-Powered Operation with Chemical-less Technology.
ENERLES, the Highly Valued New System in the World.

ENERLES successfully reduced odor and awful taste from dam water, which was caused by algae’s eutrophication. The system is operating smoothly at a water treatment facility of Changxing County located in Zhejiang province, China.

Features and Outline of ENERLES

Dams are constructed widely around the world for agricultural, industrial, domestic and commercial purposes and also for water control as flood countermeasure. However, along with the community development, dam water pollution has become one of the serious problems. In Changxing County, China, the dam also encountered the problems such as odor and water pollution. NAGAOKA technology has helped to solve these problems without using chemical nor electricity.

Features and Outline of ENERLES

  • Energy Saving

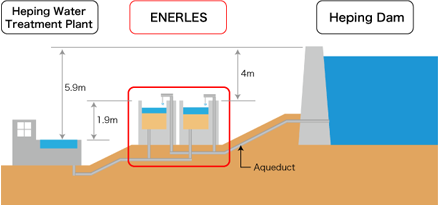

    Water head difference between dam and water treatment facility is used for treatment process, so no electric power is required for operation.

  • Space Saving

    High filtration speed as 170m/day, and compact filtration type using no chemicals.

  • Cost Saving

    Simple structure and effective treatment by a combination of Nagaoka screen and special oxidation nozzle , and easy operation.

ENERLES Design

ENERLES Design

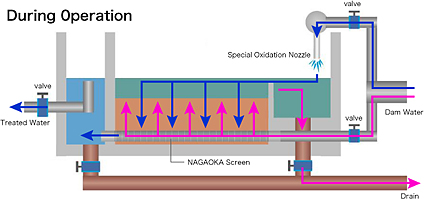

ENERLES is simple structure design integrating sand filter, NAGAOKA core technology of screen, and special oxidation nozzle. Therefore, operation and maintenance are also easy.

Nagaoka’s New Technology: Low-Energy Aeration System
(Patent pending jointly with Tokyo Waterworks)

AERSYS which removes VOC (Volatile organic compound) and FCD (Free carbon dioxide) from groundwater and surface water to the water quality standards required by Japanese Ministry of Health, Labour and Welfare.

The water source for drinking water, such as groundwater and river water may contain harmful substances to human body, such as VOC and FCD. Japanese Ministry of Health, Labour and Welfare already set up the water quality standards for these substances in drinking water.
In conventional method, since huge equipment, vast energy, and large amount of chemicals are required, high-cost on construction, running and maintenance has been the problem.
AERSYS, co-developed with Tokyo Metropolitan Waterworks Bureau, is the innovative system to solve these problems, which can remove over 99% of harmful substances by using only air, packing materials, and activated carbon to provide safe and secure palatable water at low cost.

  • Saving Energy

    • ●Only requires blower air/water (A/W) ratio of 20 to remove over 99% of contaminated substance. (able to remove contaminant under the standard level)
    • ●Remove VOC or FCD to the target level in a single process.
    • ●Maintain high treatment ability by circulating air inside of the column. (Less effect from outside air temperature.)
    • ●Saving 60% electricity consumption from the conventional system. (From our research)

  • Saving Space

    • ●No additional space for incidental equipment is required by reuse of clean air purified through activated carbon for aeration.

  • AERSYS Design

    AERSYS Design

  • Simple Maintenance

    • ●Simple maintenance by non-chemical treatment and automatic operation provides stable performance at low cost.

  • Environmentally Friendly

    • ●No harmful effect on the surrounding environment by air circulation system which cleans the contaminated air and recycle the air inside of the treatment system without emission.
